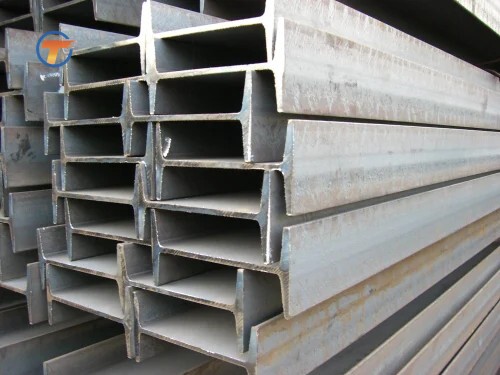

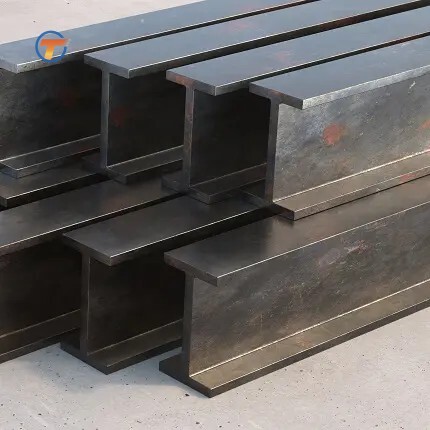

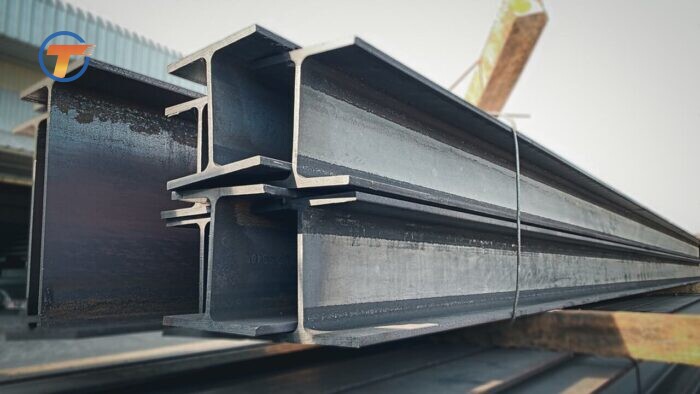

H-Beam

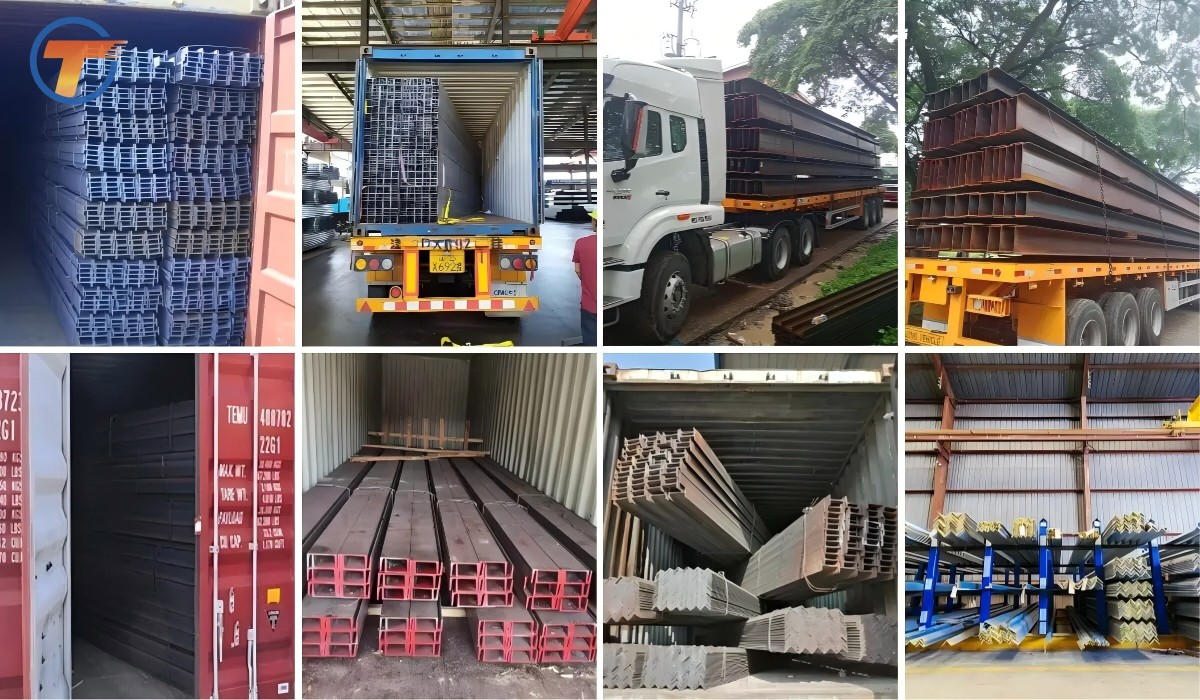

Packaging & Delivery:
1. Delivery: within 7-10 days or considering the quantity;
Transport: By bulk or Containers;
Supply ability: 10000 metric tons/ month;
Payment terms L/C, T/T;
2. Packing: It can pack by container or bulk vessel.
Standard export seaworthy package, it use steel belt with bundle according product's size.
We can make it as your requirement.

Phone : +86 15365235758

Whatsapp : +86 15365235758

Email : sale@tiscosteelss.com

sale@tiscosteelss.com

Product Description

Item	H-beam
Grade	GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E etc. EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q etc. ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80 etc. JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE etc.
Surface	Hot Rolled (HR), Cold Rolled (CR), Pickled & Oiled, Galvanized (GI)
Package	Standard seaworthy packaging: Strapped with steel straps and then wrapped in plastic bags, or as required
Container Size	20ft GP: 5898mm (L) × 2352mm (W) × 2393mm (H)40ft GP: 12032mm (L) × 2352mm (W) × 2393mm (H)40ft HC: 12032mm (L) × 2352mm (W) × 2698mm (H)
Price term	EXW, FOB, CIF, CFR, DDP, DAP, etc.
Payment term	T/T, L/C, Western Union, D/P
Export to	USA, Canada, Mexico, Brazil, Germany, UK, UAE, India, Vietnam, Thailand, Australia, etc.
MOQ	1 Ton (Negotiable for bulk orders)
Application	Construction, structural fabrication, machinery, automotive, shipbuilding, general manufacturing, and welding projects. Custom sizes available.
Contact	For inquiries or custom requirements, please contact us for competitive pricing and fast delivery.

Specifications Comparison Table

1. National Standard Hot-rolled H-beam (GB/T 11263)

Type	Model	High(H) mm	Width(B) mm	Web(t₁) mm	Flange(t₂)mm	Theoretical Weight(kg/m)
HW	HW 100×100	100	100	6	8	16.9
	HW 200×200	200	200	8	12	49.9
	HW 400×400	400	400	13	21	172
HM	HM 150×100	150	100	6	9	20.7
	HM 300×200	300	200	8	12	56.1
	HM 400×300	400	300	11	18	107
HN	HN 100×50	100	50	5	7	9.3
	HN 300×150	300	150	6.5	9	36.7
	HN 400×200	400	200	8	13	65.4

2. American standard H-beam (ASTM A36/A572)

Model	High(mm)	Width(mm)	Web(t₁)(mm)	Flange(t₂)(mm)	Theoretical Weight(kg/m)
W8×31	200	135	7.2	11.4	46.1
W12×65	305	205	10.9	16.3	96.7
W24×146	610	260	16.3	32.0	217

3. European standard H-beam (EN 10025)

Model	High(mm)	Width(mm)	Web(t₁)(mm)	Flange(t₂)(mm)	Theoretical Weight(kg/m)
HE 100B	100	100	6	10	19.9
HE 200B	200	200	8.5	13	61.3
HE 400M	400	300	18	28	187
IPE 200	200	100	5.6	8.5	22.4

4. Welded H-beam (Customized Size Example)

Model	High(mm)	Width(mm)	Web(t₁)(mm)	Flange(t₂) (mm)	Theoretical Weight(kg/m)
H 500×250×10×16	500	250	10	16	89.6
H 800×300×14×20	800	300	14	20	172

Q:Where is your factory ?
A:Our company's processing center is located in Tianjin, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.

Q:What are your company's main products ?
A:Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q:How do you control quality ?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.

Q:What are the advantages of your company ?
A:We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q:How many coutries you already exported ?
A:Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q:Can you provide sample ?

A:Small samples in store and can provide the samples for free.Customized samples will take about 5-7days.
